Diamondback Catch 2 / 27.5+
Diamondback Catch 2 / 27.5+
SKU:210000043586
Couldn't load pickup availability
Details
There are many ways to tackle tough terrain. You can, for instance, add lots of suspension travel to a bike. There's nothing wrong with that approach, but the Catch 2 takes a different tack. By combining our brisk-pedaling Level Link suspension with modern geometry and wide, plus-size tires, we've created a bike that possesses the playful personality of a sporty, mid-travel bike with the traction and control of a bike that packs much more suspension travel. The Catch's aluminum frame features carefully hydroformed tubes for reliable durability and light weight. This top-tier Catch also wears an equally impressive component mix that includes a Shimano SLX 1x12 drivetrain paired with Shimano cranks, a Fox Rhythm 34 suspension fork, Shimano SLX hydraulic disc brakes, and a KS E30i dropper post. Sand, mud, rock gardens, kitty litter over hardpack... the Catch is a blast when exploring the trails less traveled.
Specs
| Frame | Catch 27.5+, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube |
|---|---|

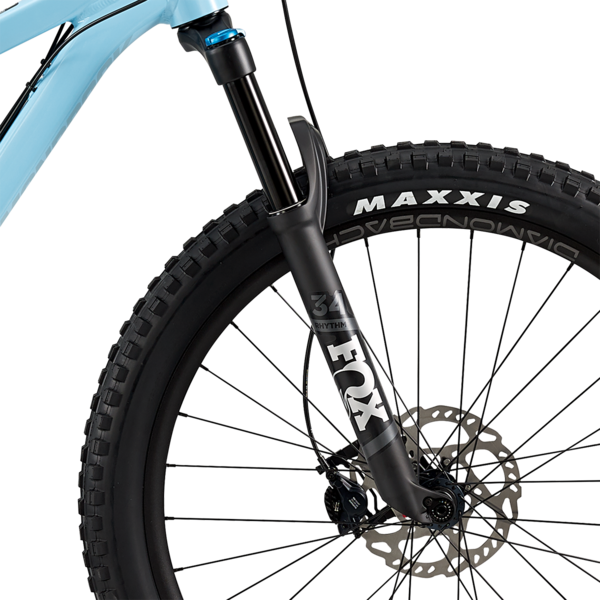

| Fork | Fox Rhythm 34 27.5"+/29", 130mm Travel, Grip Dampener w/Sweep Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle |
| Rear Shock | Fox Float DPS EVOL LV, Performance, 3 Position Lever, 200x57mm, 22.2mm Eyelet Width |
| Rims | Diamondback Blanchard 38R, 6069 Aluminum Tubeless Ready, 32h |
| Spokes | 14g Stainless Steel |
| Tires | Front: Maxxis Minion DHF 27.5x2.8" EXO, TLR, Folding Rear: Maxxis Minion DHR II 27.5x2.8" EXO, TLR, Folding |
| Bottom Bracket | Shimano BB-52 |

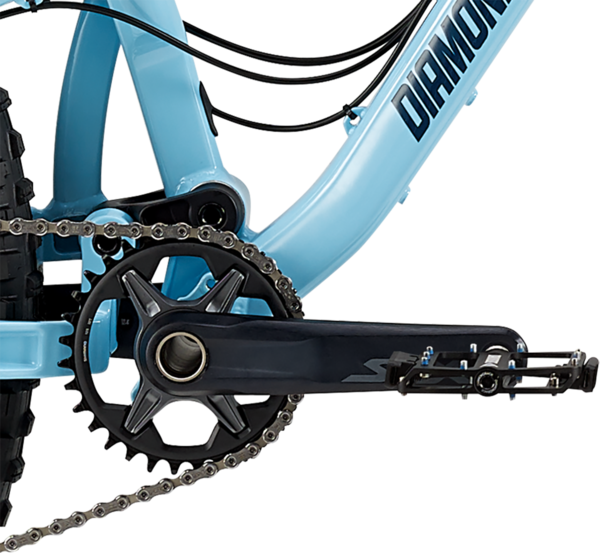

| Crankset | Shimano SLX M7100, 32T |
| Shifters | Shimano SLX M7100, 12 Speed |

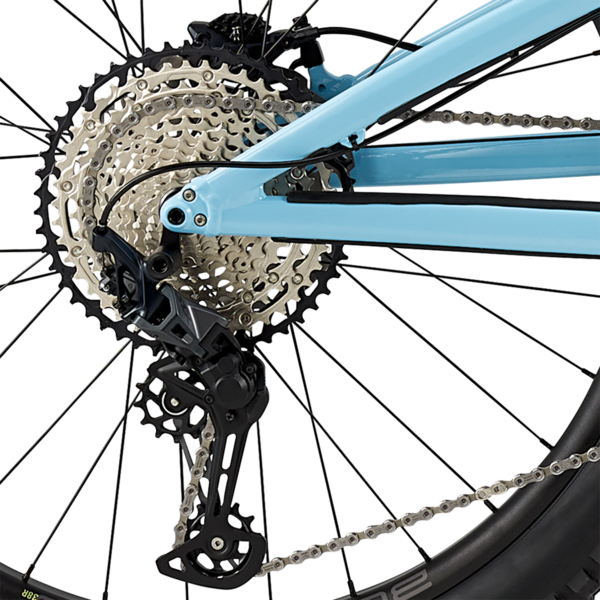

| Rear Derailleur | Shimano SLX M7100 Shadow Plus, 12 Speed, SGS |
| Cassette/Freewheel | Shimano SLX M7100 Cassette, 12 Speed, 10-51T |
| Chain | Shimano SLX M7100, 12 Speed |
| Brakes | Shimano SLX M7100, 2 Piston w/180mm Front /180mm Rear RT70 Rotors |
| Brake Levers | Shimano SLX |

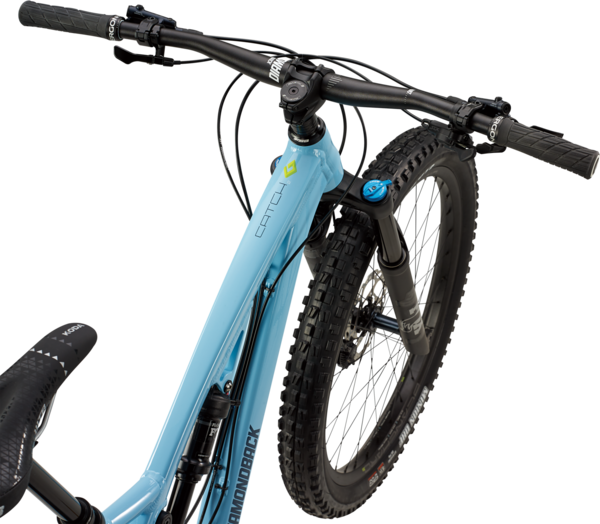

| Handlebars | DB35 Aluminum 760mm Wide, 15mm Rise, 35mm Bar Bore |
| Tape/Grips | Ergon GE10 Evo Lock-On |
| Stem | Factor Components F355, 35mm Reach, 35mm Bar Bore |
| Headset | FSA No. 57, Sealed Cartridge |

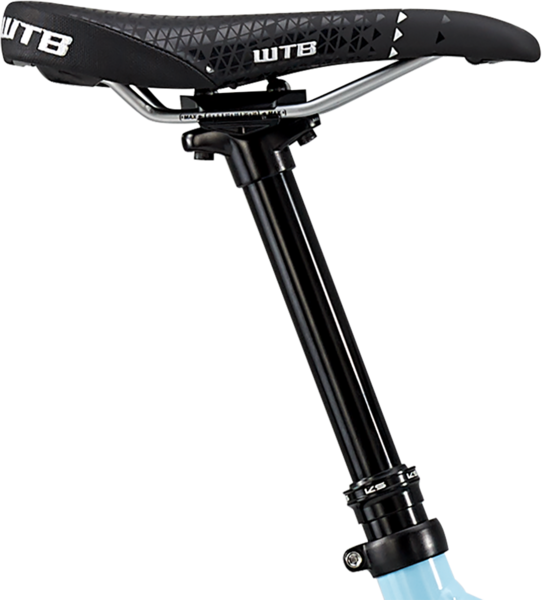

| Seatpost | Kindshock Rage-I, Internal Dropper, 31.6 w/Westy 1x Remote |
| Saddle | WTB Volt Steel |
| Pedals | DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins |
| Accessories & Extras | Tool Kit, DB Shock Pump, Tubeless Valves, DB Mud Guard, Spare RD Hanger, Carbon Paste |
