Diamondback
Diamondback Hatch 1
Diamondback Hatch 1
SKU:210000047575
Regular price
$399.99 USD
Regular price
$599.99 USD
Sale price
$399.99 USD
Unit price
per
Couldn't load pickup availability
In stock and ready to ship from our warehouse. **Complete Bikes and overweight products will incur addtional shipping charges. We will contact you with an accurate estimate.**
Details
Get your start on the new Hatch 1 hardtail trail bike.
At home on dirt, gravel, and pavement, the Hatch 1 keeps the adventure going when it's time to explore the path less travelled. A 100mm travel fork and grippy 2.25-inch wide knobby tires help you easily roll over bumps and potholes with confidence. With 21 gear combinations at your fingertips, you'll always find a comfortable pedaling pace, and Tektro V-brakes will keep your speed under control. Introduce yourself to the adventure a hardtail can bring without breaking the bank.
Wheel Size
X-Small – Small: 27.5-inch
Medium – X-Large: 29-inch
Specs
| Frame | Custom Formed AL-6061 Heat Treated Aluminum with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL) |
|---|---|

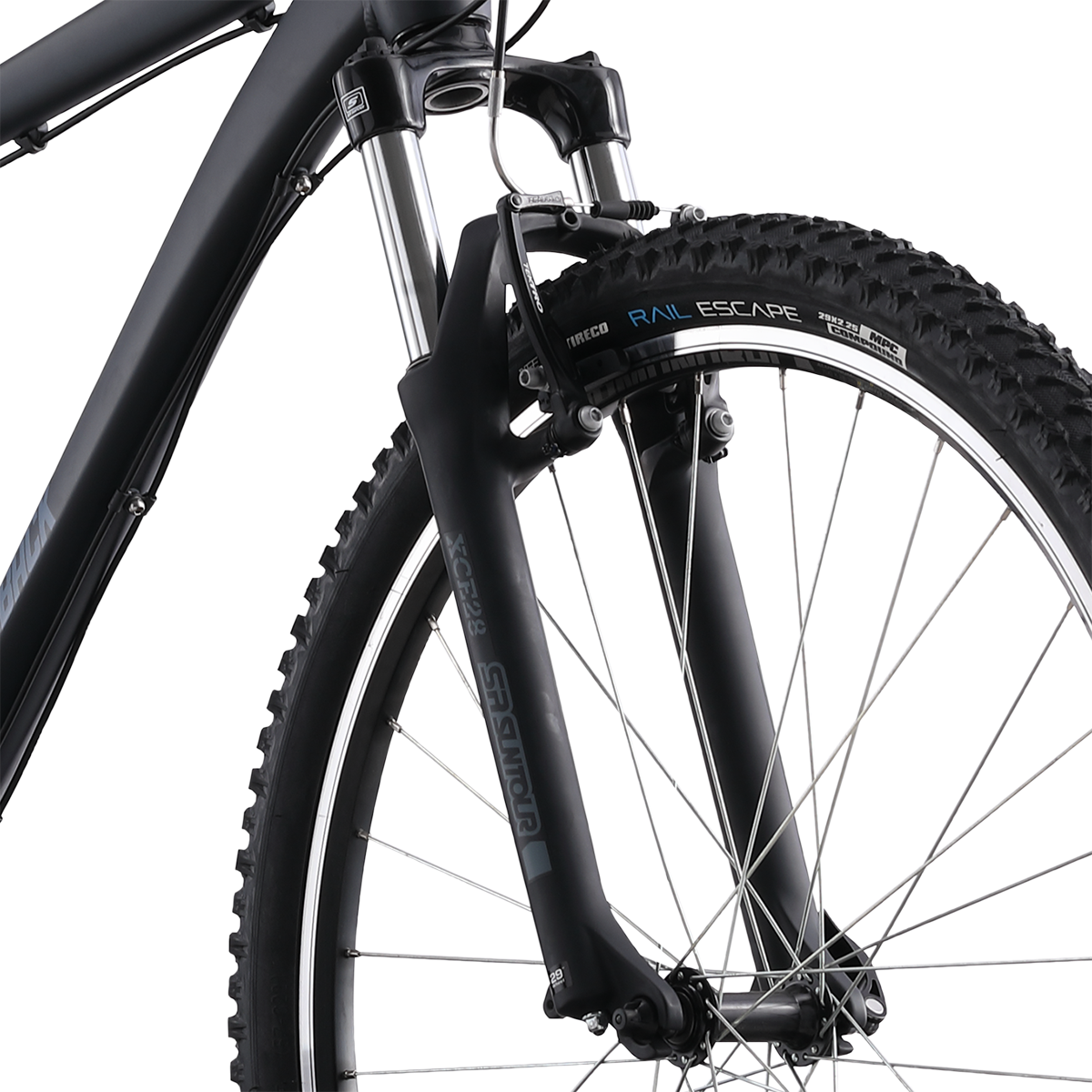

| Fork | SR Suntour XCE-28 100mm of Travel with Pre-Load Adjuster, for post mount V-brakes |
| Rims | Aluminum MTB DBM-2 Double Wall, 32 hole |
| Hubs | Front: Formula OV-31F Quick Release Rear: Formula OV-31R Quick Release |
| Spokes | Steel J-Bend |
| Tires | Vee Tire Co. Rubber Rail Escape (27.5" - XS,S) (29" - M,L,XL) |
| Bottom Bracket | Sealed Cartridge Bearing |
| Crankset | Shimano Tourney TY301, 42/34/24t |
| Shifters | Shimano EF-41 3x7 Speed EZ-Fire Shifter |
| Front Derailleur | Shimano Tourney TY500, Dual Pull |
| Rear Derailleur | Shimano Tourney TY300 |
| Cassette/Freewheel | Shimano MFTZ500 14-28 Tooth Freewheel |
| Chain | KMX Z-7 |
| Brakes | Tektro 855AL V-Brake |
| Brake Levers | Shimano EF41 with 2-finger Reach Adjustable lever |
| Handlebars | Aluminum 31.8mm Bar, 25mm Rise |
| Tape/Grips | MTB Grip |
| Stem | Aluminum MTB 31.8mm Bar Bore Stem |
| Headset | 1-1/8 Semi Integrated, Cartridge Bearing |

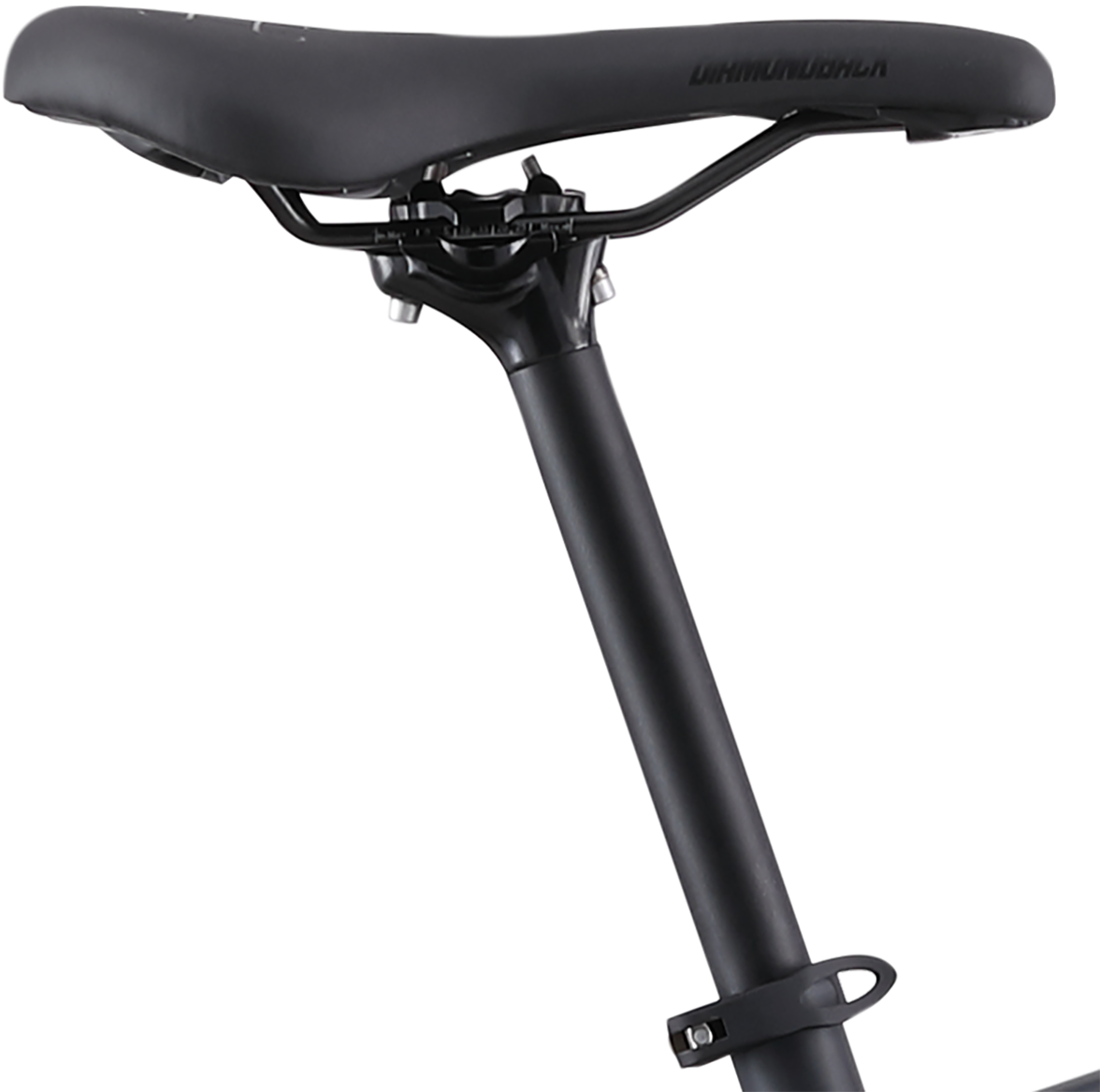

| Seatpost | Aluminum 27.2 Post with 15mm Offset |
| Saddle | MTB Saddle |
| Pedals | Wellgo Plastic Body Platform |
| Accessories & Extras | Rack, Fender, and Bottle Mounts |
